Product Name : Computerized Aluminum Panel Saw
Product No : CK-3800A
Computerized Panel Saw
  • High precision!
  • Easy to operate
  • With features of high precision and high-efficiency Computerized panel saw has been fully satisfied with each customer
  • The computerized panel saw is equipped with well-planned computer control, making the panel cutting easier and more efficient
Inquiry

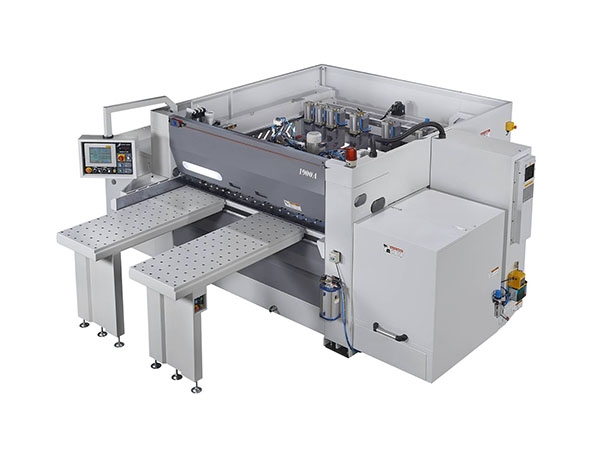

MODELCK-3800ACK-1900A
Cutting length 3800mm 1900mm
Cutting thickness 180mm 100mm
Main sawblade - sawblade diameter 610mm 405mm
Main sawblade - Arbor diameter 1” 1”
Main sawblade - speed 2200-3600rpm 3600-3900 R.P.M
Feed forward speed 1~10 M/min 1~10 M/min
Retract speed 24 M/min 24 M/min
Main sawblade motor 40HP 20HP
Saw carriage drive motor 2KW 2KW
Automatic feed system 3KW (AC servo) 1.5KW (AC servo)
Automatic panel feed speed 15 M/min 15 M/min
Number of gripper unit 80mm 13 pcs 6 pcs
Heavy rubber wheel feeder 13 pcs 6 pcs
Number of Ball bearing table 4 pcs 2 pcs
Table height from floor 1060 1015
Net weight 14000kgs 6250kgs
Machine dimensions (LxWxH) 7465x8425x2420mm 4450x4250x1950mm
